IRM100可編程紅外發射器
IRM100 IRM 100可編程黑體源
內外調制直流-100赫茲
消除對外部斬波器的需求
1~20μm光譜輸出
0到750°C可調輸出
自校準
USB驅動和編程
緊湊尺寸1.75“平方x0.75
IRM 100是一個易于使用，緊湊，可編程的紅外黑體源，供研究人員，原始設備制造商和商業應用。

基于MEMS技術，IRM 100的高速響應時間提供了一個從直流到100 Hz的調制范圍-消除了對外部斬波器的需求。對于脈沖操作，IRM 100可以在內部觸發，也可以從外部源觸發。

IRM 100也是自我校準和運行在一個恒定的電源模式，消除老化的影響，并提供長期穩定和無麻煩的操作。

IRM 100是用戶通過USB端口編程的一個簡單的ASCII命令集，以控制輸出電平，脈沖重復頻率，占空比和觸發模式。USB端口還為IRM 100提供直流電源。所有設置都在內部保存在非易失性內存中。


Home › Programmable IR Emitters Programmable IR Emitters

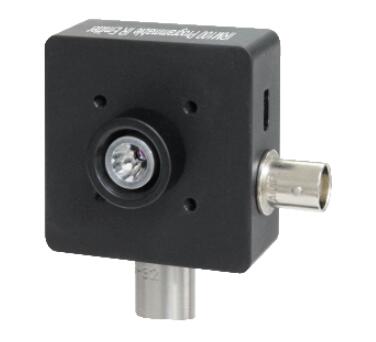

IRM100 Programmable Black Body Source
Internally or Externally Modulated DC-100Hz
Eliminates Need for External Chopper
1 to 20μm Spectral Output
Adjustable Output from 0 to 750°C
Self Calibrated
USB Powered and Programmed
Compact Size 1.75″ square x 0.75
The IRM100 is an easy to use, compact programmable IR black-body source for researchers, OEMs, and commercial applications.

Based on MEMs technology, the high speed response time of the IRM100 provides a modulation range from DC to 100Hz – eliminating the need for an external chopper. For pulsed operation, the IRM100 can be triggered internally or from an external source.

The IRM100 also is self-calibrating and runs in a constant power mode eliminating aging effects and providing long term stability and hassle-free operation.

The IRM100 is user-programmed via the USB port with a simple ASCII command set to control the output level, pulse repetition frequency, duty cycle and trigger mode. The USB port also provides DC power to the IRM100. All settings are saved internally in non-volatile memory.

OEM inquiries welcome.
